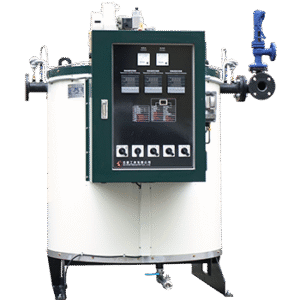

Thermal Oil Boilers (Gas, Diesel, Heavy Oil)
-
DO-30 (G、K、H)
Product Name：
Thermal Oil Boilers (Gas, Diesel, Heavy Oil)
Product Number：
DO-30 (G、K、H)
Product Category：
Alarm of liquid level Insufficient.
Alarm of Circulation Pump Fail.
Dowtherm oil temperature limit.
Chimney temperature limit.
Pressure differential controller:make sure oil flowing.
Safety valve:system valve limit.
Facebook
Email
WhatsApp
| Model | DO- | 30G | 30K | 30H | |
|---|---|---|---|---|---|
| Model | – | Vertical Type | |||
| Heat Output | ×10000 kcal/hr | 30 | 30 | 30 | |
| Maximum Working Temperature | ℃ | 300 | 300 | 300 | |
| ℃ 300 300 300 | kgf/cm2 | 7 | 7 | 7 | |
| Boiler Thermal Oil Capacity | L | 300 | 300 | 300 | |
| Fuel Consumption | NG | Nm3/h | 35.7 | – | – |
| LPG | kg/h | 30.8 | – | – | |
| Diesel | L/h | – | 42 | ||
| Heavy Oil | L/h | – | – | 38.1 | |
| Burner Model | – | G60S | K60S | H60S | |
| Electrical Power Consumption | KW | 9.4 | 9.8 | 13.8 | |
| Circulation Pump Horsepower | HP | 10 | 10 | 10 | |
| Boiler Dimension | Length | mm | 1810 | 1810 | 1810 |
| Width | mm | 1600 | 1600 | 1600 | |
| Height | mm | 2250 | 2250 | 2250 | |
| Thermal Oil Outlet Diameter | – | 2″ | 2″ | 2″ | |
| Chimney Diameter | mm | 200 | 200 | 200 | |
| Boiler Approx. Weight | kg | 1500 | 1500 | 1500 | |
