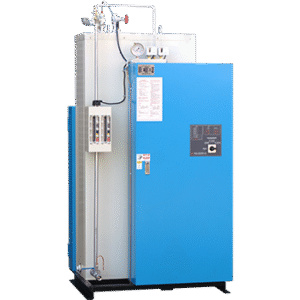

Electric Steam Boilers
-
EB-200
Product Name：
Electric Steam Boilers
Product Number：
EB-200
Product Category：
No features available.
Facebook
Email
WhatsApp
| Model | EB-200 | |||
|---|---|---|---|---|
| Performance | Equivalent output | kg/h | 200 | |
| Heat output | kcal/h | 107500 | ||
| Max. pressure | kgf/cm2 | 10 | ||
| Water content | L | 164 | ||
| Electrical power capacity | Electric-heater | kw | 125 | |
| Water pump | 0.75 | |||
| Control panel | 0.4 | |||
| Pipe diameters | Feed water inlet dia | mm | 20A | |
| Steam outlet dia | 25A | |||
| Boiler-water drain dia | 25A | |||
| Power wire inlet dia 220V | mm2 | 250 | ||
| Power wire inlet dia 380V | 125 | |||
| Size | Length | mm | 940 | |
| Width | 1200 | |||
| Height | 2230 | |||
