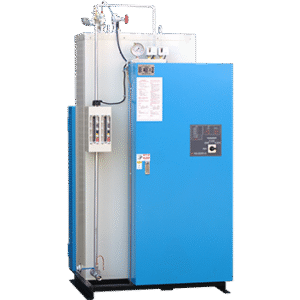

Electric Steam Boilers
-
EB-120
Product Name：
Electric Steam Boilers
Product Number：
EB-120
Product Category：
No features available.
Facebook
Email
WhatsApp
| Model | EB-120 | |||
|---|---|---|---|---|
| Performance | Equivalent output | kg/h | 120 | |
| Heat output | kcal/h | 64500 | ||
| Max. pressure | kgf/cm2 | 10 | ||
| Water content | L | 82 | ||
| Electrical power capacity | Electric-heater | kw | 75 | |
| Water pump | 0.75 | |||
| Control panel | 0.3 | |||
| Pipe diameters | Feed water inlet dia | mm | 20A | |
| Steam outlet dia | 20A | |||
| Boiler-water drain dia | 25A | |||
| Power wire inlet dia 220V | mm2 | 125 | ||
| Power wire inlet dia 380V | 50 | |||
| Size | Length | mm | 920 | |
| Width | 770 | |||
| Height | 2200 | |||
