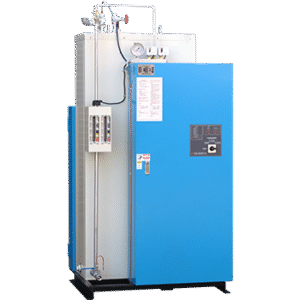

Electric Steam Boilers
-
EB-100
Product Name:
Electric Steam Boilers
Product Number:
EB-100
Product Category:
Environmentally Friendly – electric heating, no hazardous exhaust, sanitary and zero-pollution
High Efficiency – no exhaust heat loss, maintain non-stop high performance
Fully Equipped – steam safety valve, steam pressure switch, steam pressure gauge, idle combustion prevention and all sorts of safety devices are equipped fully.
Sophisticated Design – detailed design, minimalist, small
Simple – Easy to operate, microcomputer self-check and report faulty position
Stable – Electric heaters start in sequence and maintain a steady current, no abrupt current occurs.
Technology – Designed with electric leakage detection, which automatically detects the electric leakage in heaters, displays the position and stops the faulty heater without affecting other heaters to function. Safety is guaranteed. Water Insufficient Detection – microcomputer auto-detection, signals for malfunction to achieve effective prevention of the boiler from idle combustion caused by water insufficiency & wearing down water pump. Water Level Control Abnormal Detection – microcomputer auto-detection, effective prvention of the water level electrode from disconnection, short circuit, or malfunction caused by water scale.
| Model | EB-100 | |||
|---|---|---|---|---|
| Performance | Equivalent output | kg/h | 100 | |
| Heat output | kcal/h | 53750 | ||
| Max. pressure | kgf/cm2 | 10 | ||
| Water content | L | 82 | ||
| Electrical power capacity | Electric-heater | kw | 62.5 | |
| Water pump | 0.75 | |||
| Control panel | 0.3 | |||
| Pipe diameters | Feed water inlet dia | mm | 20A | |
| Steam outlet dia | 20A | |||
| Boiler-water drain dia | 25A | |||
| Power wire inlet dia 220V | mm2 | 100 | ||
| Power wire inlet dia 380V | 38 | |||
| Size | Length | mm | 920 | |
| Width | 770 | |||
| Height | 2200 | |||
